點擊圖片查看原圖產品價格 面議
最小起訂量：10 片 可售數量：100 片
WIFI快速漫游網卡
￥400.00/片
企業名片產品概述

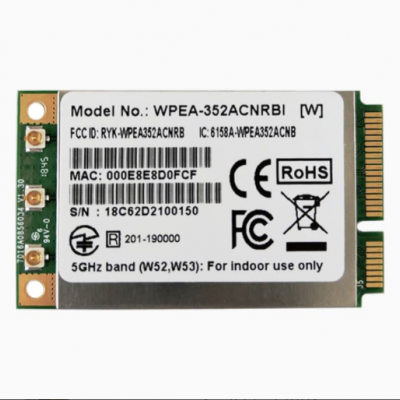

WPEA-352ACNRB 是一種 IEEE 802.11ac 無線適配器，可在 2.4GHz 和 5GHz 頻段運行，提供 PCIe 迷你卡外形尺寸。WPEA-352ACNRB 采用 QCA9880 芯片組，通過 3 x 3 MIMO 技術將整體吞吐量大幅提高至 1.3Gbps。利用革命性的 WiFi 5 技術，WPEA-352ACNRB 在吞吐量和范圍方面樹立了新的標桿，使其成為視頻、語音和數據傳輸?shù)认M(fèi)者和企業應用的理想選擇。WPEA-352ACNRB 向后兼容 802.11a/n 并完全支持符合行業標準的安全性。
它支持 3T3R (3×3) 技術，運行速度高達 433Mbps (11an MSC15) 和 1.3Gbps (11ac VHT MCS9)。WPEA -352ACNRB 支持 20/40/80MHz 和 256-QAM 以最大限度地提高帶寬效率。 WPEA-352ACNRB采用最新的 802.11ac 解決方案，是下一代高吞吐量企業網絡解決方案的理想選擇。結合先進的安全加密技術，如 64/128 位 WEP、WPA、WPA2 和 802.1x，有助于防止用戶設備受到惡意攻擊。
適用應用
STANDARD |
||
| WI-FI | IEEE 802.11ac/a/b/g/n | |
| Chipset | ·Qualcomm Atheros QCA9880-BR4A | |
| Host Interface | WLAN : PCIe | |
RADIO |
||
| Antenna | 3 x IPEX MHF1 connectors | |
| Operating Frequency | 802.11ac/a/b/g/n ISM Band | |
| 2.412GHz~2.484GHz
5.150GHz~5.850GHz *Subject to local regulations |
||
MODULATIONS |
|
| 802.11b | DSSS (DBPSK, DQPSK, CCK) |
| 802.11g | OFDM (BPSK, QPSK, 16-QAM, 64-QAM) |
| 802.11n | OFDM (BPSK, QPSK, 16-QAM, 64-QAM) |
| 802.11a | OFDM (BPSK, QPSK, 16-QAM, 64-QAM) |
| 802.11ac | OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM) |
POWER & SENSITIVITY |
||
| WiFi | Power – TX (± 2dBm) | Sensitivity – RX |
| 11b @11Mbps | 20dBm | ≤ -86dBm |
| 11g @ 54Mbps | 16dBm | ≤ -73dBm |
| 11gn HT20 @ MCS 7 | 15dBm | ≤ -70dBm |
| 11gn HT40 @ MCS 7 | 15dBm | ≤ -67dBm |
| 11a @ 54Mbps | 14dBm | ≤ -73dBm |
| 11an HT20 @ MCS 7 | 13dBm | ≤ -71dBm |
| 11an HT40 @ MCS 7 | 13dBm | ≤ -68dBm |
| 11ac VHT80 @ MCS 9 | 10dBm | ≤ -58dBm |
POWER CONSUMPTION |
||
| Continue TX | 1360mA | |
| Continue RX | 720mA | |
ENVIRONMENTAL |
||
| Operating Voltage | DC 3.3V | |
| Temperature Range | -20~ 65°C (Operating) | -30 ~ 75°C (Storing) |
| Humidity(Non-Condensing) | 10~ 85% (Operating) | 5 ~ 90% (Storing) |
SIZE |
||
| Dimension (MM) | 50.8mm(±0.3mm) x 29.85mm(±0.3mm) x 4.1mm(±0.3mm) | |
| Weight | 7.8g | |
SOFTWARE |
||
| Driver | Linux | |
| Security | 64/128-bits WEP, WPA, WPA2,802.1x | |
Miscellaneous |
||
| Warranty Period | 12 Month | |
| HS Code | 8517620050 | |
 |
 |
 |
|
| USA | EU Region | Japan | Canada |
 |
 |
||
| ROHS | REACH |
